CD connection
- Thread starter JJK1954
- Start date
zek2024
New member
Why did you use simultaneously digital and analogue connection between CD player and MC331?
Then what is the connection to my CD playr? where does the coax go? I'm pretty savvy, but I'm lost on this one.
zek2024
New member
It would help to know which CD player it is.
To connect to the MC331, you can either use a digital connection via the coaxial output, in which case the DAC in the amplifier is used, or an analog connection via the RCA connectors, in which case the DAC in the CD player is used.
There is no need to use both types of connection at the same time.
To connect to the MC331, you can either use a digital connection via the coaxial output, in which case the DAC in the amplifier is used, or an analog connection via the RCA connectors, in which case the DAC in the CD player is used.
There is no need to use both types of connection at the same time.
It is a new Yamaha CD-S303. Sorry, I'm still a little confused. What connection goes to my Denon receiver, and what goes to the CD player? I was using the RCA analog cables from the CD to the MC and a digital coax from the MC to the Receiver. Either way I had no sound. I'm ready to give up and return it. The manual is useless. There are no diagrams.
zek2024
New member
You didn't mention that you also have a Denon receiver.
Where are your speakers connected - to the MC331 or to the Denon?
You don't get anything with a coaxial connection between the MC and the Denon because both devices have coaxial inputs (the MC doesn't have a digital output).
Can you explain what you actually want to connect to what and why you have two amplifiers for the speakers.
The speakers (Klipsch) are connected to the Denon. I guess I'm out of luck on this. I was just trying to enhance my CD player with a DAC. As I said, I'm pretty savvy, but I guess I have the whole concept wrong. I just wish there were diagrams how to connect a DAC. There is nothing on Youtube. Just reviews. Thanx anyway.
zek2024
New member
What is your complete audio chain from source to speakers, excluding the CD player?
MC331 is not a DAC, it is a speaker amplifier that also contains a DAC and cannot be used as a standalone DAC.
Seem like the chain you want is this:
1. Yamaha CD- player Coaxial (Digital output) > MC331 Coaxial (Digital Input).
The CD player DAC is bypassed; digital data is transmitted to MC331.
2. MC331 3.5mm (Analog Pre-out) to Denon receiver RCA (Analog Input L/R) - for example CD/TAPE IN.
MC331 DAC convert the digital signal to analog audio and transmitted it to the Denon receiver.
The amplifier of MC331 will be bypassed; Denon Receiver will be amplifying the sound to the speakers.

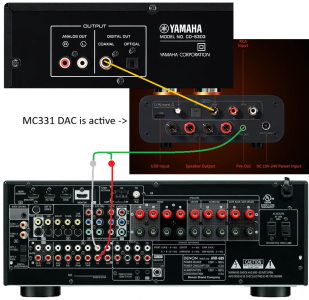

Here's a diagram of the wiring.
Is this a better audio quality? Maybe.
You have DAC in all of those 3 devices that you can experiment with.
1. CD player Analog Out - > Denon Analog CD/TAPE IN (This uses the CD Player DAC).
2. CD player Digital Out - > Denon Digital Input (This uses the Denon DAC).
3. CD player Digital Out - > MC331 Digital Input - Pre-out -> Denon Analog CD/TAPE IN (This uses MC331 DAC).
I just realized this is a year old thread after writing this. Oh well maybe it'll help others.
1. Yamaha CD- player Coaxial (Digital output) > MC331 Coaxial (Digital Input).
The CD player DAC is bypassed; digital data is transmitted to MC331.
2. MC331 3.5mm (Analog Pre-out) to Denon receiver RCA (Analog Input L/R) - for example CD/TAPE IN.
MC331 DAC convert the digital signal to analog audio and transmitted it to the Denon receiver.
The amplifier of MC331 will be bypassed; Denon Receiver will be amplifying the sound to the speakers.
Here's a diagram of the wiring.
Is this a better audio quality? Maybe.
You have DAC in all of those 3 devices that you can experiment with.
1. CD player Analog Out - > Denon Analog CD/TAPE IN (This uses the CD Player DAC).
2. CD player Digital Out - > Denon Digital Input (This uses the Denon DAC).
3. CD player Digital Out - > MC331 Digital Input - Pre-out -> Denon Analog CD/TAPE IN (This uses MC331 DAC).
I just realized this is a year old thread after writing this. Oh well maybe it'll help others.
